i-tec® M

KELCH_i-tec_M32

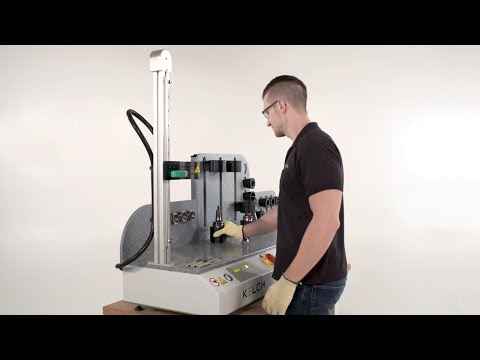

The new modular
shrink-fit device.

KELCH_i-tec_M32_Expansion_stages

Expansion stages
based on modularity

Advantages

  • Modular design: Individual expansion and configuration options for the base shrink-fit device
    to a high-end complete solution.
  • Efficient and ultra-fast heating: High-output induction coil for efficient shrinking in seconds of HM (ø 3 - 32 mm) and HSS (ø 6 - 32 mm) tools. The induction output of the coil can even reach 13 KW in the short term.
  • Highly versatile: Shrinking of tools with taper size
    up to SK 60 / HSK 160 / PSC 100 and total length
    up to max. 650 mm (with tower extension: 1400 mm).
  • Gentle, durable & safe shrinking: Overheating of the shrink-fit chuck is prevented, thereby ensuring a long chuck life.
  • Ergonomic workspace with large storage area Ergonomically arranged work area
    with generous storage space for tools and shrink accessories for convenient and safe operation.
  • Simple and intuitive operation
    Shrink quickly and easily with just a few simple steps. LED displays on the coil signal whether the coil is heating or not.
  • Patented contact cooling technology The contact cooling ensures even, gentle and dry cooling
    of shrink-fit chucks, without any additional costs for emulsion or compressed air.
Technical Data
